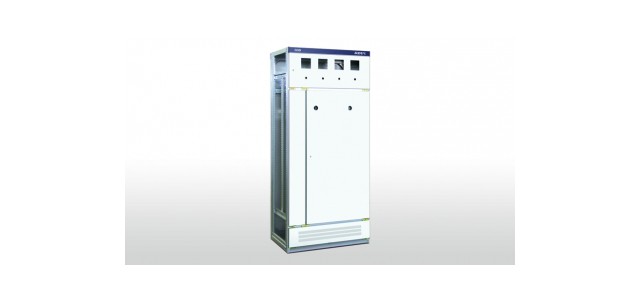

The frame is assembled by new type 8MF cold-bend steel with rigidity and bearing capacity meeting installation requirement of electrical components. Installation holes of E=20mm and E=100mm are provided on the frame toimprove the assembly and universality of products. Main bus is arranged on the top of the switchgear adopting ZMJ-type bus clamp in the structure of block combination. It is molded by high flame-resistance PPO material through thermal injection with high mechanical strength and insulation degree, and can bear current with effective value of 50kA and peak value of 105kA. The long-term allowable temperature of thermal stability impact force can reach 120%℃.

主要特點  Main Features

1、框架為組合式結構，基本骨架采用新型免焊接8MF型鋼組成;

2、主體框架可采用鍍鋅板或敷鋁鋅板加工，更加環保、省時高效;

3、柜體防護等級為IP3X。

1. The frame is in combined structure with the main frame made of new-type welding-free 8MF steel;

2. Main frame can be processed by galvanized plate or aluminum zinc plate to be more environmentally friendly, time saving and efficient.

3. Switchgear protection grade is IP3X;
